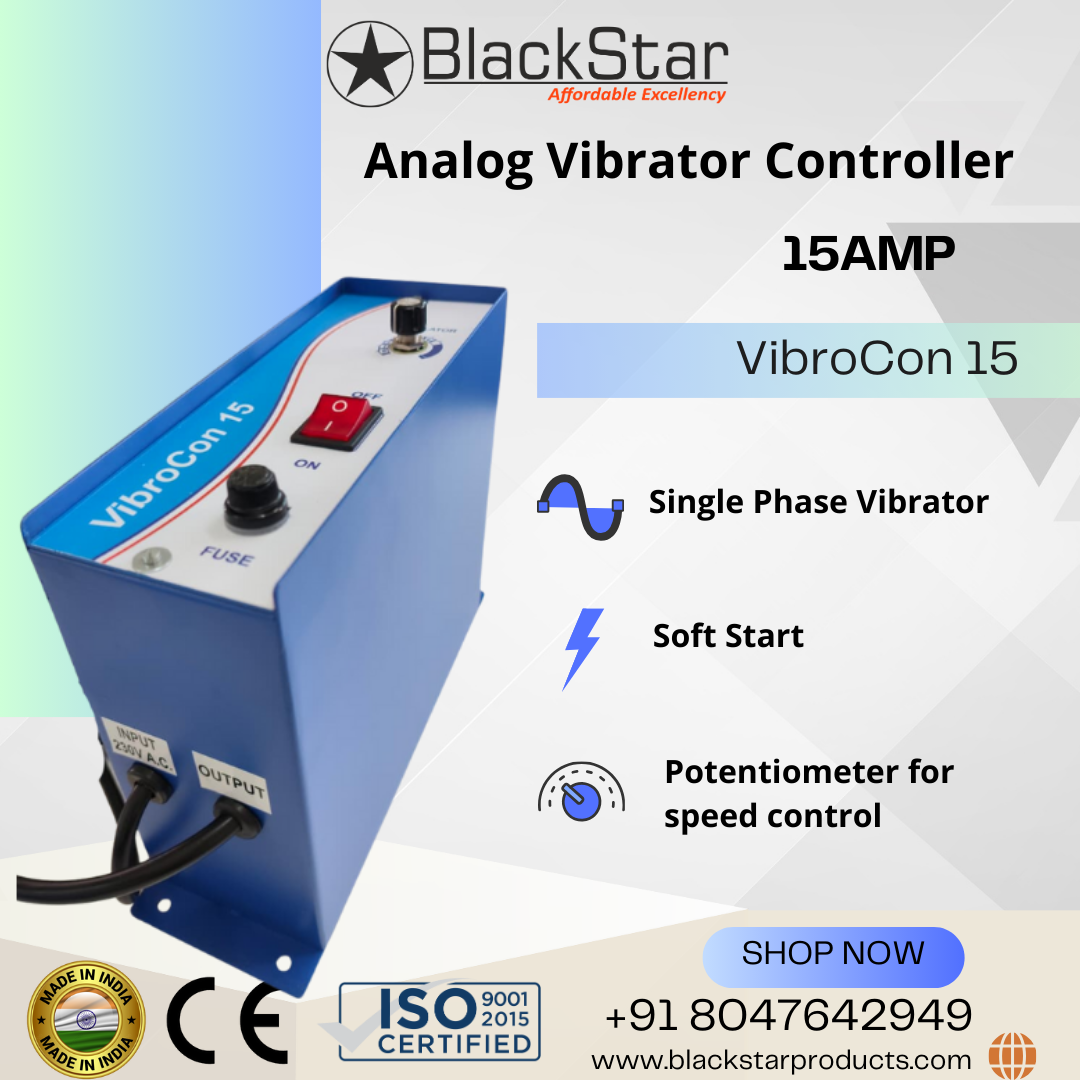

Vibrocon 15 (15 amp)
- Automatic Voltage Regulation by using a Potentiometer
- Soft Start
- Single Phase Vibrator
- Input Voltage: 220-260V
- Output Voltage: 0-260V
- Current: 15 amp
- Short Circuit Protection by using a Fuse
- Casting Material: Mild Steel
Brief Specifications
| Input | Range | Unit | Description | |
|---|---|---|---|---|
| Min | Max | |||
| Input | 220 | 260 | V | AC RMS |
| Output Voltage | 0 | 260 | V | Less than Input |
| Output Current | 0 | 15 | A | |
| Output frequency | 50 | Hz | Half Wave | |
| Output Waveform | Tangent Sign | |||
| Enclosure | MS | |||
| Indicator | ON/OFF | |||
| Protection | 20 AMP Fuse | |||
| Control Action | Potentiometer | 0-10Scale | ||
| Mounting | Wallmounted | |||
FEATURES :
- Smooth Vibration Control: The controller provides smooth and precise control of vibration intensity, ensuring consistent material flow and improving overall process efficiency in feeder systems.
- Analog Potentiometer Control: It is equipped with an easy-to-use analog potentiometer that allows operators to accurately adjust the output voltage according to application requirements.
- Stable Performance: The controller maintains stable output even under fluctuating load conditions, which helps in preventing irregular vibrations and ensures reliable operation.
- Continuous Operation: It is designed to support continuous operation without overheating or performance drop, making it ideal for long working hours in industrial setups.
- Safety Protection: The controller includes inbuilt fuse protection that safeguards the system from overloads and short circuits, enhancing operational safety.
- Compact & Easy Installation: Its compact and wall-mounted design makes installation simple while saving valuable workspace in control panels or industrial areas.

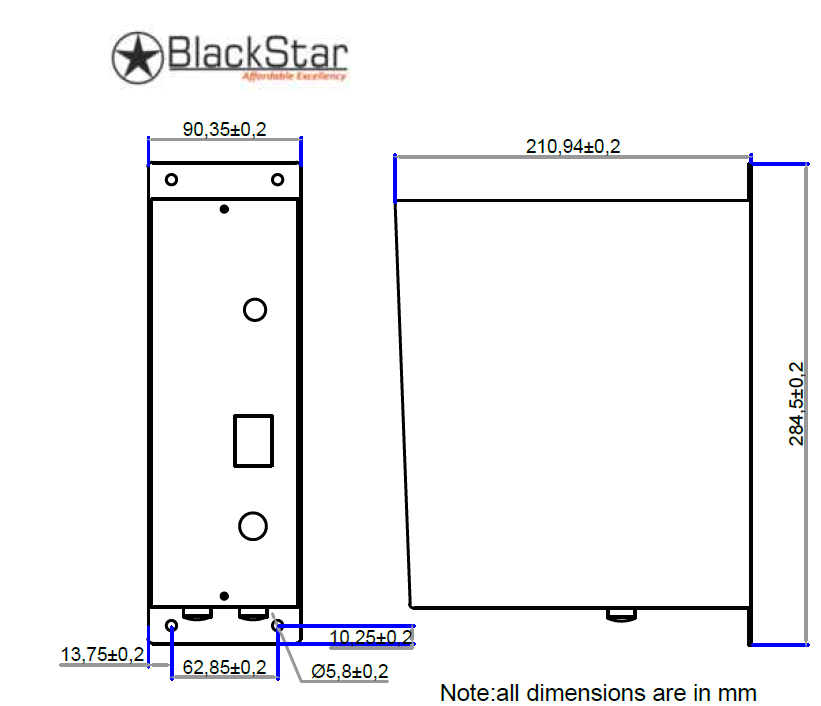

Dimenssion – 90x145x285 (LxWxH)
Weight – 3.00 kg
