BVC - 6+

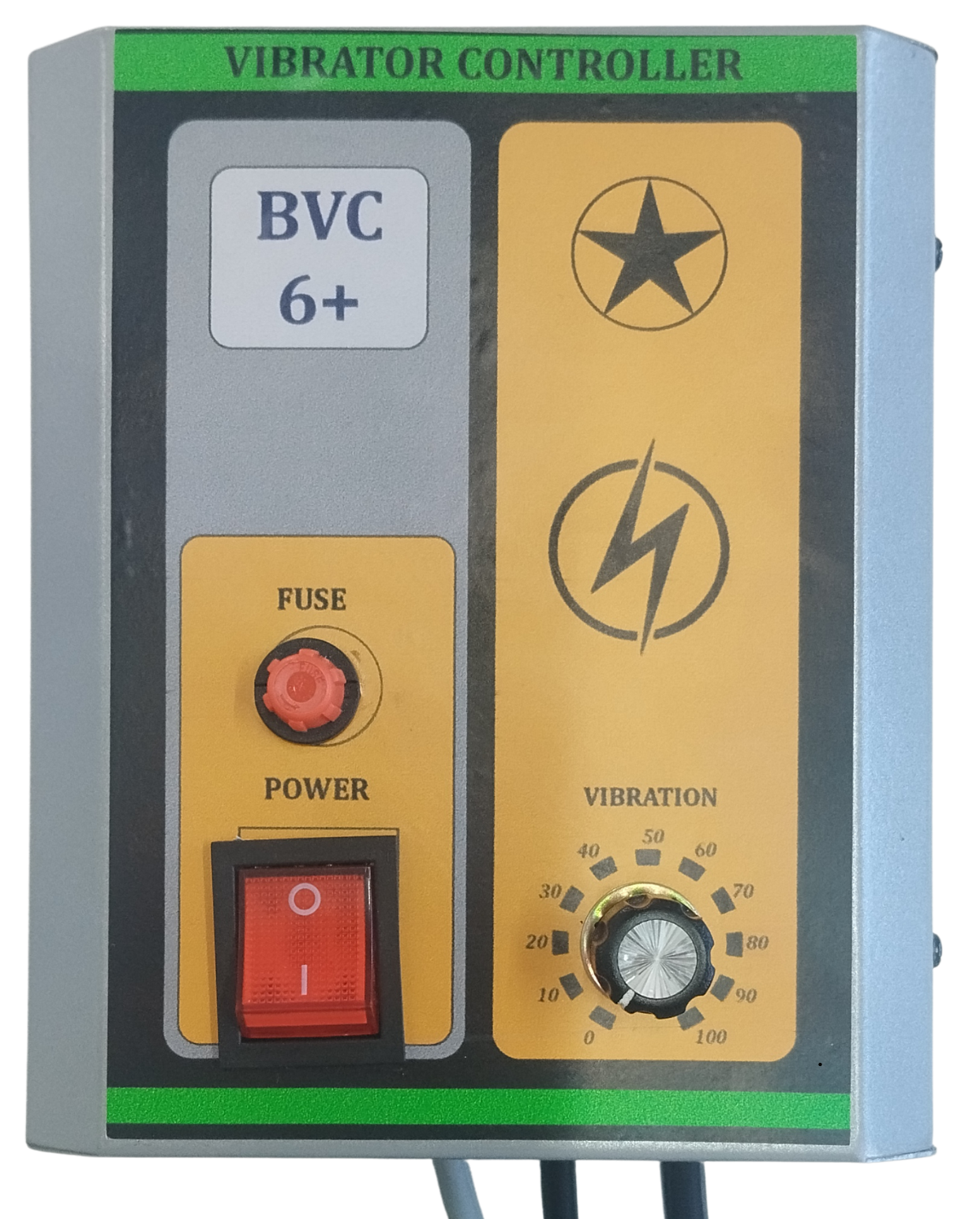

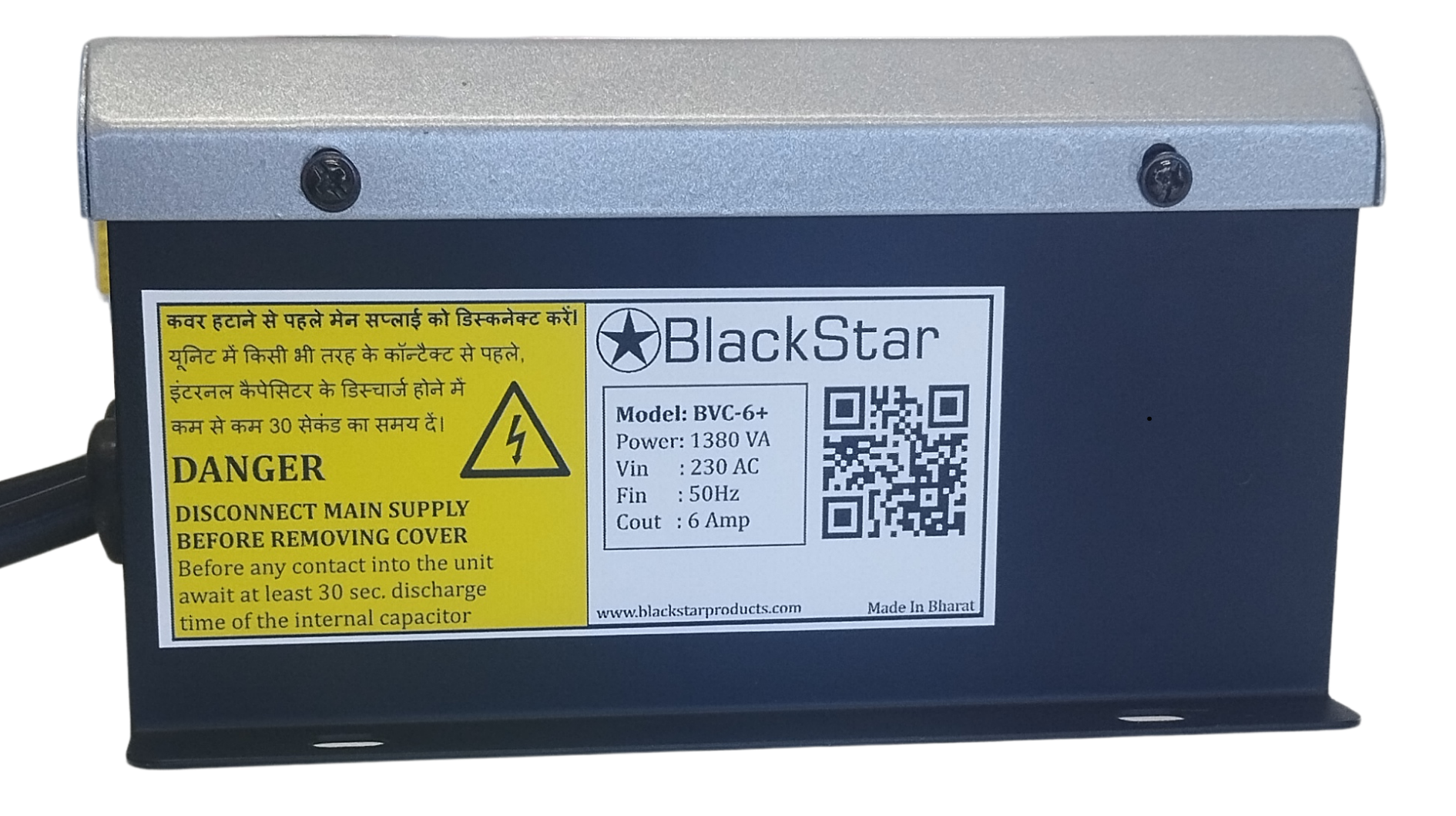

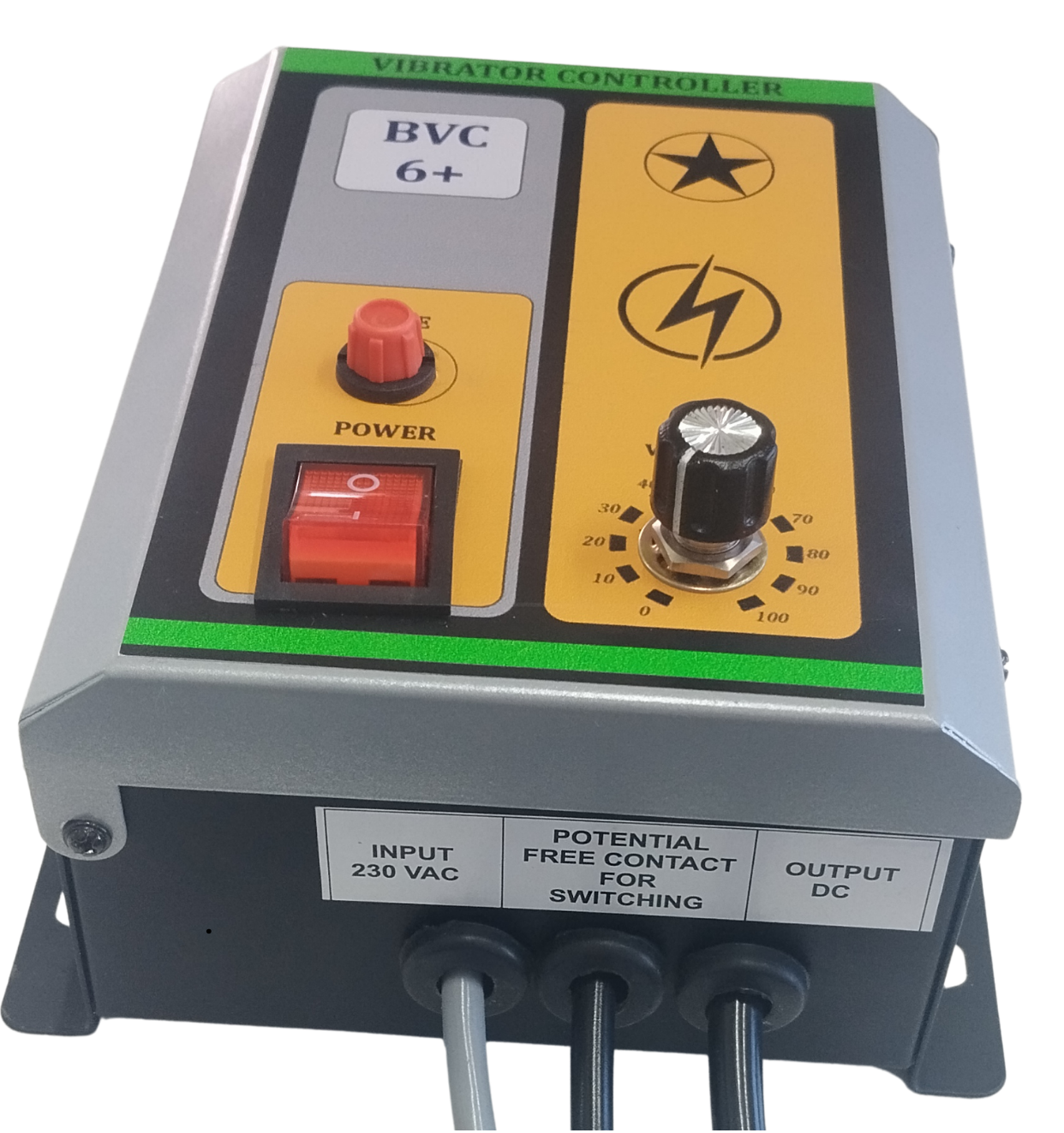

Product: Vibrocon 6+
- Automatic Voltage Regulation by using a Potentiometer
- Soft Start
- Single Phase Vibrator
- Input Voltage: 220-260V
- Output Voltage: 0-260V
- Current: 6 amp
- Short Circuit Protection by using a Fuse
- Casting Material: Mild Steel
- Remote Control ON/OFF
- Control By Potential free
Brief Specifications
| Input | Range | Unit | Description | |
|---|---|---|---|---|
| Min | Max | |||
| Input | 220 | 260 | V | AC RMS |
| Output Voltage | 0 | 260 | V | Less than Input |
| Output Current | 0 | 6 | A | |
| Output frequency | 50 | Hz | Half Wave | |
| Output Waveform | Tangent Sign | |||
| Control Action | 0-10 V | V | Potential free Input | |
| Enclosure | MS | |||
| Indicator | ON/OFF | |||
| Protection | 6 AMP Fuse | |||
| Control Action | Potentiometer | 0-10Scale | ||
| Mounting | Wallmounted | |||

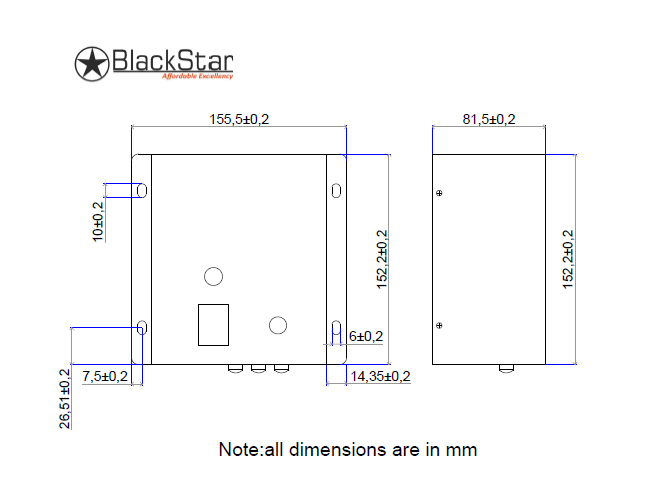

Dimenssion – 200x80x110 (LxWxH)
Weight – 1200gm
Product Variants
| Product Code | Supply Voltage | Output | Certification | |
|---|---|---|---|---|
| BVC - 6+ | 220-260 V | Pulse Output | REmot Control | CE, RoHS |
| Yes | ON/OFF | |||
