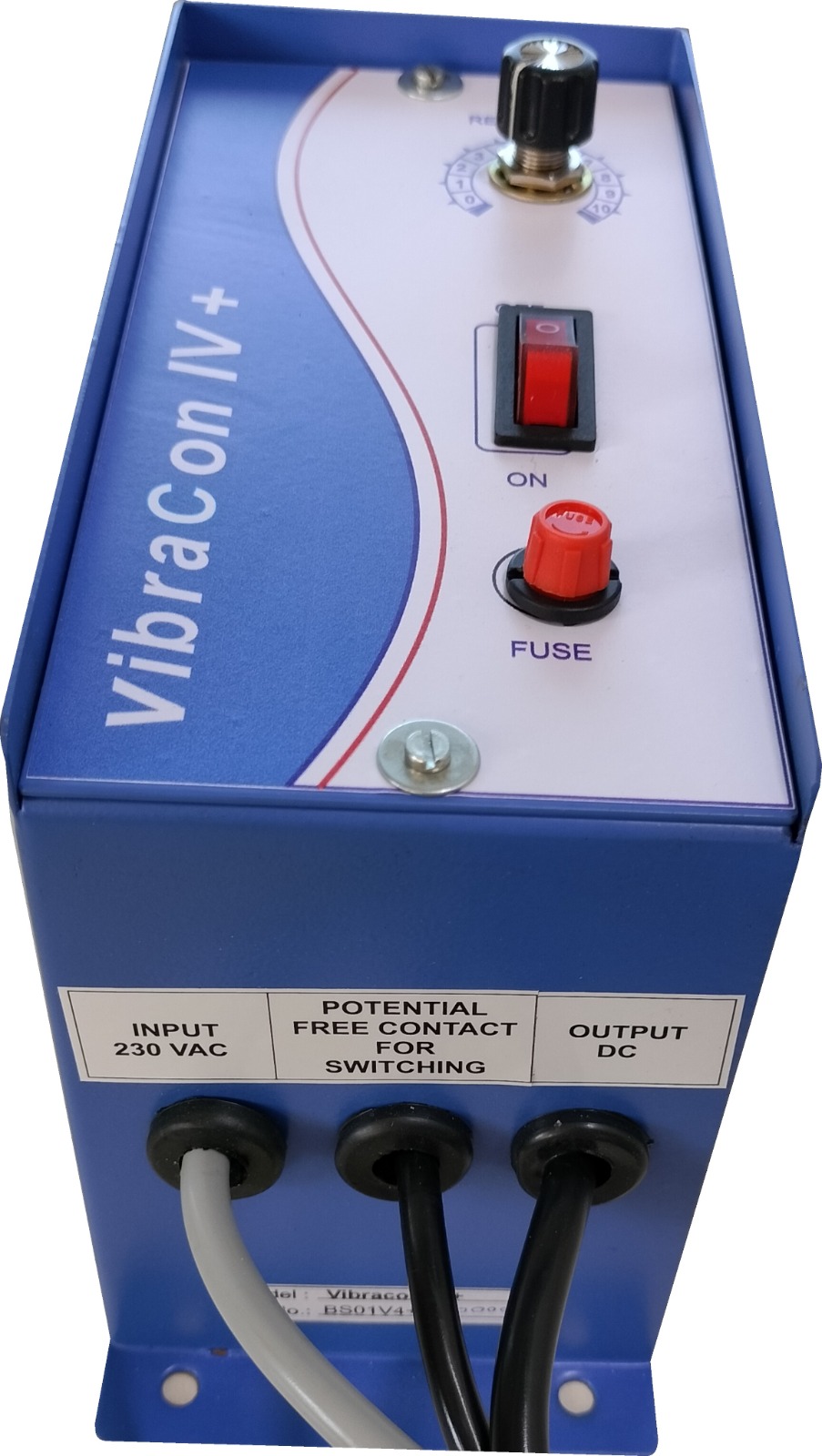

Vibrocon IV+
Product: Vibrocon IV+
- Automatic Voltage Regulation by using a Potentiometer
- Soft Start
- Single Phase Vibrator
- Input Voltage: 220-260V
- Output Voltage: 80-265V
- Current: 6 amp
- Short Circuit Protection by using a Fuse
- Casting Material: Mild Steel
- Remote Control ON/OFF
- Control By Potential free
Brief Specifications
| Item | Range | Unit | Description | |
|---|---|---|---|---|
| Min | Max | |||
| Input | 80 | 265 | V | AC RMS |
| Output Voltage | 0 | 100 | V | Less than input |
| Output Current | 0 | 6 | A | |
| Output Power | 0 | 1400 | VA | |
| Output Frequency | 100 | Hz | At In Freq 50Hz | |
| 120 | Hz | At In Freq 60Hz | ||
| Output Waveform | Tangent Sign | |||
| Sensor | 24 | V DC | ||
| Controlling Output | 24 | V DC | ||
| Timer | 000-999 | Sec, Min, Hour | ||
| Analog | 0-5V | V | ||
| Fuse Capacity | 6 | AMP | ||
| Display | Digit | LED | ||

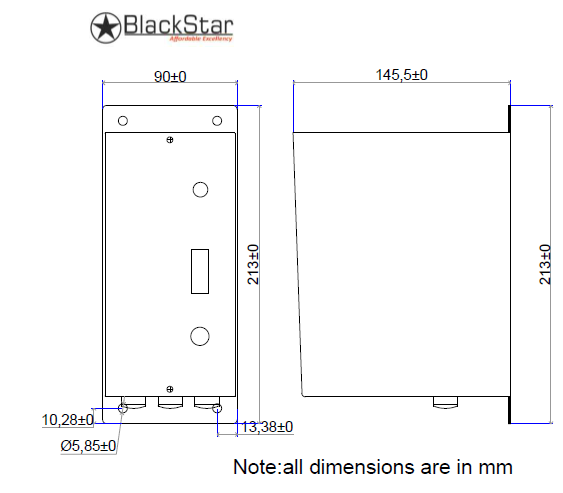

Dimenssion – 210x90x155 (LxWxH)
Weight – 1880 gm
Product Variants
| Product Code | Supply Voltage | Output | Certification | |
|---|---|---|---|---|
| Vibrocon - IV+ | 80-265 V | Pulse Output | Remote Control | CE, RoHS |
| Yes | ON/OFF | |||
