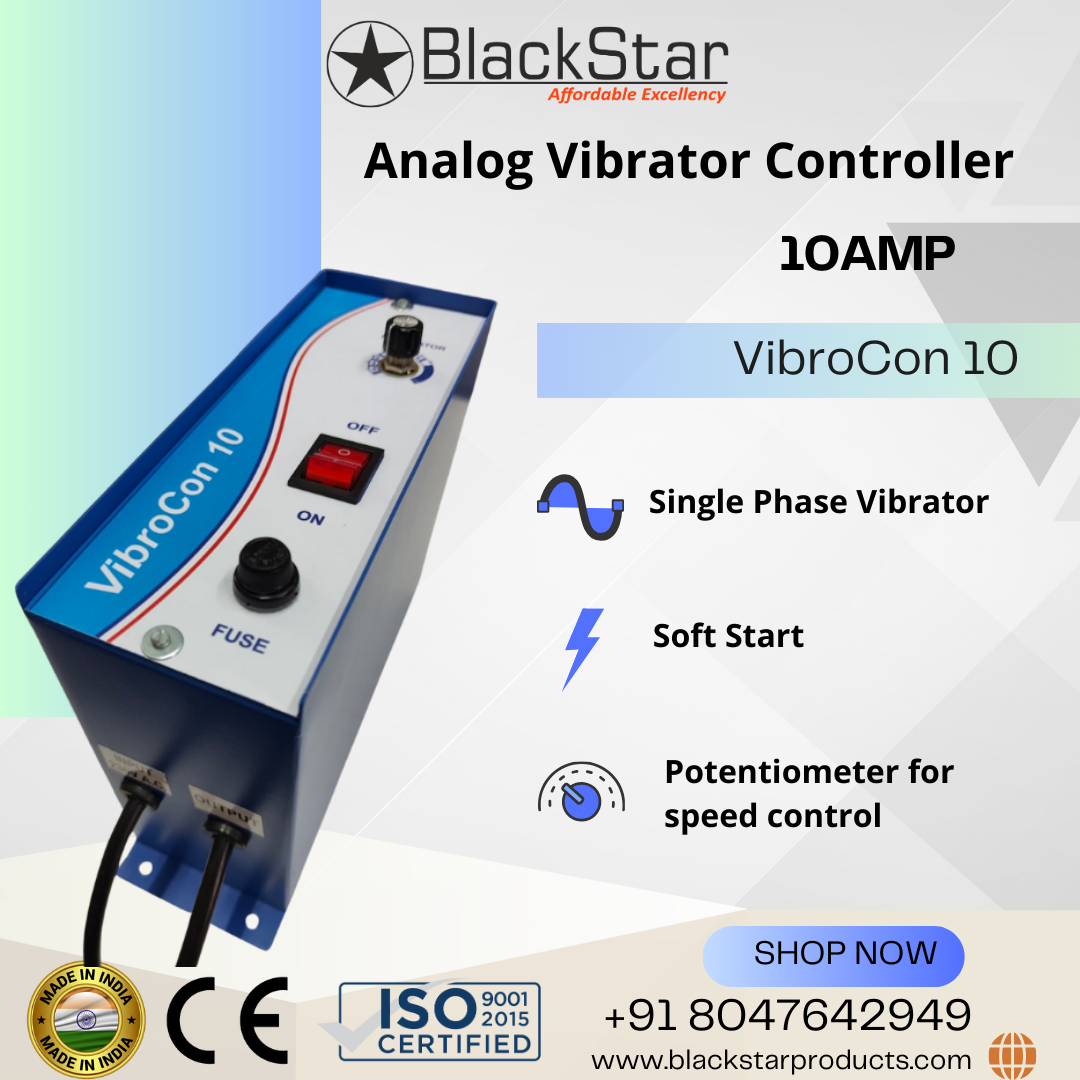

Vibrocon 10 (10 amp)
Product: Vibrocon 10
- Automatic Voltage Regulation by using a Potentiometer
- Soft Start
- Single Phase Vibrator
- Input Voltage: 220-260V
- Output Voltage: 0-260V
- Current: 10 amp
- Short Circuit Protection by using a Fuse
- Casting Material: Mild Steel
Brief Specifications
| Input | Range | Unit | Description | |
|---|---|---|---|---|
| Min | Max | |||
| Input | 220 | 260 | V | AC RMS |
| Output Voltage | 0 | 260 | V | Less than Input |
| Output Current | 0 | 10 | A | |
| Output frequency | 50 | Hz | Half Wave | |
| Output Waveform | Tangent Sign | |||
| Control Action | 0-10 V | V | ||
| Enclosure | MS | |||
| Indicator | ON/OFF | |||
| Protection | 6 AMP Fuse | |||
| Control Action | Potentiometer | 0-10Scale | ||
| Mounting | Wallmounted | |||
Dimenssion – 190x57x90 (LxWxH)
Weight – 930 gm
Product Variants
| Product Code | Supply Voltage | Output | Certification | |
|---|---|---|---|---|
| Vibrocon-10 | 220-260 V | Pulse Output | Potentiometer | CE, RoHS |
| Yes | Yes | |||
